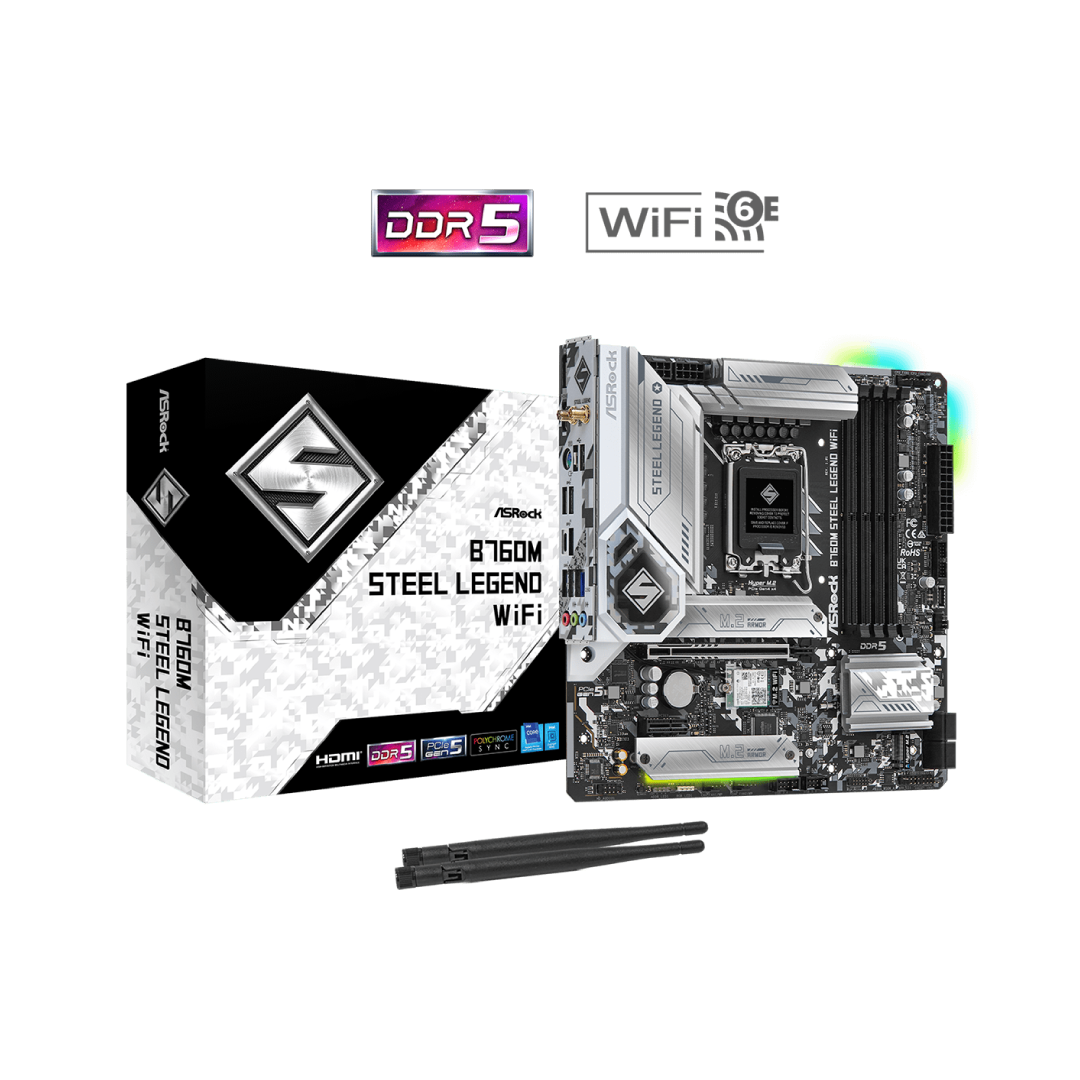

ASROCK B760M Steel Legend WiFi
JOD 149.000
Availability:
In stock
Out of stock
- Supports 14th, 13th & 12th Gen Intel® Core™ Processors (LGA1700)
- 12+1+1 Power Phase, Dr.MOS for VCore+GT
- 4 x DDR5 DIMMs
Supports Dual Channel, up to 7200+ (OC) - 1 PCIe 5.0 x16, 1 PCIe 4.0 x1
- Graphics Output Options: HDMI, DisplayPort, eDP
- Realtek ALC897 7.1 CH HD Audio Codec, Nahimic Audio
- 4 SATA3, 3 Hyper M.2 (PCIe Gen4x4)
2 USB 3.2 Gen2 Type-C (1 Rear, 1 Front),
1 USB 3.2 Gen2 Type-A (Rear),
6 USB 3.2 Gen1 (4 Rear, 2 Front),
6 USB 2.0 (2 Rear, 4 Front) - Dragon 2.5G LAN, 802.11ax (WiFi 6E) + Bluetooth 5.3
- Supports ASRock Auto Driver Installer
| Unique Feature | Superb Productivity |
| - PCIe Gen5 (Graphics) | |
| - Dual Channel DDR5 | |
| Rock-Solid Durability | |
| - 12+1+1 Power Phase, 50A Dr.MOS for VCore+GT | |
| - Flexible Integrated I/O Shield | |
| - Nichicon 12K Black Caps (100% Japan made high quality conductive polymer capacitors) for VCore | |
| Ultrafast Connectivity | |
| - 2.5G LAN, 802.11ax Wi-Fi 6E Module | |
| EZ Update | |
| - ASRock Auto Driver Installer | |
| EZ Troubleshooter | |
| CPU | - Supports 14th, 13th & 12th Gen Intel® Core Processors (LGA1700) |
| - Supports Intel® Hybrid Technology | |
| - Supports Intel® Turbo Boost Max 3.0 Technology | |
| - Supports Intel® Thermal Velocity Boost (TVB) | |
| - Supports Intel® Adaptive Boost Technology (ABT) | |
| Chipset | - Intel® B760 |
| #NAME? | |
| - 4 x DDR5 DIMM Slots | |
| - Supports DDR5 non-ECC, un-buffered memory up to 7200+(OC)* | |
| - Max. capacity of system memory: 256GB | |
| - Supports Intel® Extreme Memory Profile (XMP) 3.0 |
